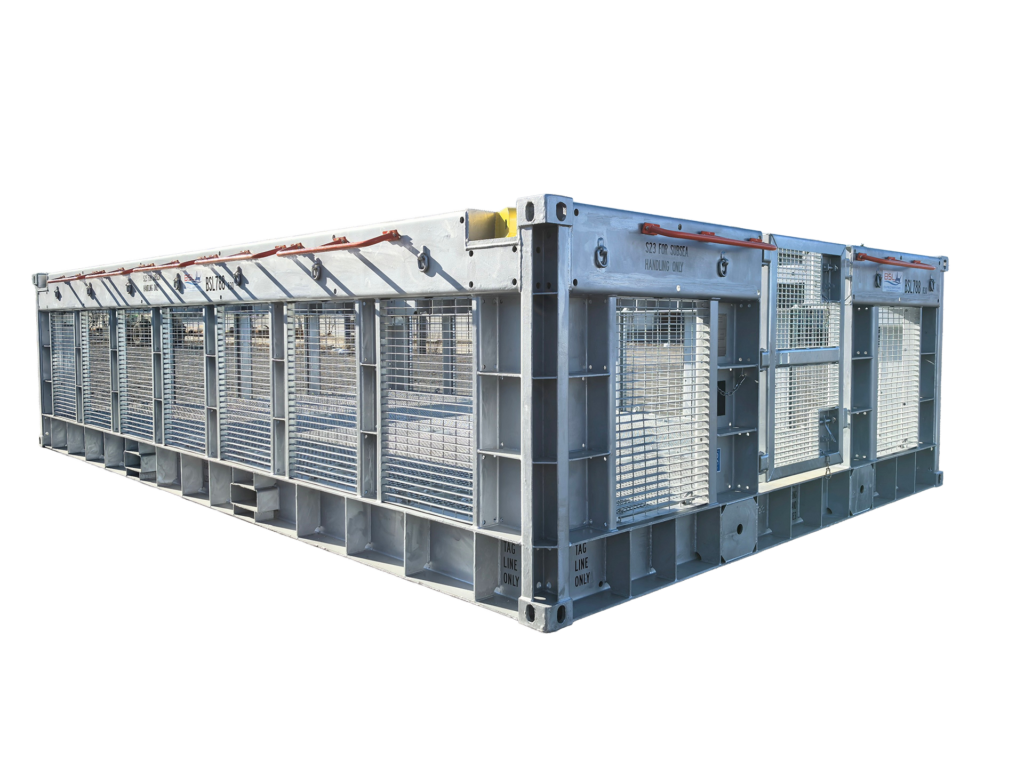

The 7.7m Offshore Subsea ROV Basket is designed, manufactured, and tested in accordance with the following latest editions of standards and regulations:

• DNV 2.7-3 - Portable offshore units (Operational Class: R30-S23)
• ISO 10855 - Offshore containers - Design, construction, testing, inspection marking

Common Uses & Features:
Ideal for large-scale subsea infrastructure projects requiring extra-wide clearance. This unit includes standard forklift pockets for easy site handling, is fully stackable to optimize deck space, and is built with a design temperature of -40°C for extreme marine conditions.

Exterior Dimension: 7,756mm x 4,756mm x 1,875mm
Interior Dimension: 7,000mm x 4,000mm x 1,501mm
Tare Weight: 12,850kg
Gross Weight: 27,850kg
Maximum Payload: 15,000kg
Internal Cubic Capacity: 42m³

*Transportation will require wide load and the transport will need to comply to local laws to each state of Australia.

*Actual specifications may vary due to product enhancement. Please contact us for more details.
