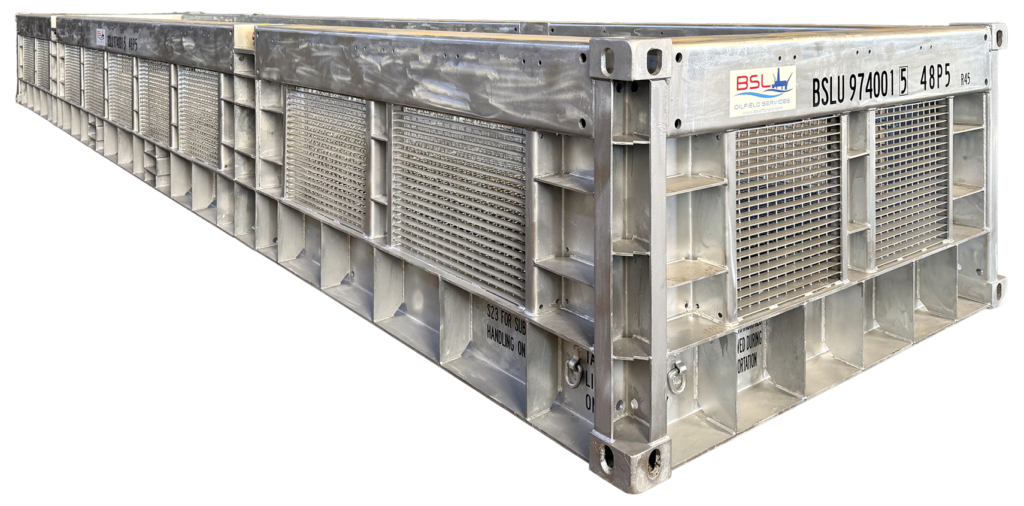

40ft Subsea ROV Basket (Fixed Sides) is designed, manufactured and tested in accordance with requirements of the following latest editions standards and regulations:

• DNV 2.7-3 - Portable offshore units • ISO 10855 - Offshore containers - Design, construction, testing, inspection marking

Common uses:
For offshore transportation and lifting in air and subsea. This unit is built with an operational class of R45-S23 and a design temperature of -40°C to withstand extreme environments. Its extended 12-meter length makes it ideal for oversized subsea infrastructure components that cannot fit in standard 20ft baskets.

Exterior Dimension (Exclude Handrail): 12,192mm x 2,438mm x 1,295mm
Exterior Dimension (Include Handrail): 12,510mm x 2,756mm x 1,295mm
Interior Dimension: 11,572mm x 1,818mm x 921mm
Tare Weight: 10,000kg
Gross Weight: 20,000kg
Maximum Payload: 10,000kg
Internal Cubic Capacity: 19.3m³

*Transportation will require wide load and the transport will need to comply to local laws to each state of Australia.

*Actual specifications may vary due to product enhancement. Please contact us for more details.
